Architecture#

This document gives a brief introduction to the WsgiDAV application package (targeted to developers).

WSGI Application Stack#

WsgiDAV is a WSGI application.

WSGI stands for Web Server Gateway Interface, a proposed standard interface between web servers and Python web applications or frameworks, to promote web application portability across a variety of web servers. If you are unfamiliar with WSGI, do take a moment to read the PEP.

As most WSGI applications, WsgiDAV consists of middleware which serve as pre-filters and post-processors, and the actual application.

WsgiDAV implements this WSGI application stack:

<Request>
  |
<Server> -> wsgidav_app.WsgiDavApp (container)
             |
             +-> debug_filter.WsgiDavDebugFilter (middleware, optional)
                   |
                 error_printer.ErrorPrinter (middleware)
                   |
                 http_authenticator.HTTPAuthenticator (middleware)
                   |           \- Uses a domain controller object
                   |
                 dir_browser.WsgiDavDirBrowser (middleware, optional)
                   |
                 request_resolver.RequestResolver (middleware)
                   |
                   *-> request_server.RequestServer (application)
                               \- Uses a DAVProvider object
                                   \- Uses a lock manager object
                                      and  a property  manager object

Note

This is the default stack. Middleware applications and order can be configured using middleware_stack option. You can write your own or extend existing middleware and place it on middleware stack.

See the following sections for details.

Building Blocks#

DAV Providers#

Inheritance diagram of wsgidav.dav_provider, wsgidav.fs_dav_provider

DAV providers are abstractions layers that are used by the RequestServer to access and manipulate DAV resources.

All DAV providers must implement a common interface. This is usually done by deriving from the abstract base class DAVProvider.

WsgiDAV comes with a DAV provider for file systems, called FilesystemProvider. That is why WsgiDAV is a WebDAV file server out-of-the-box.

There are also a few other modules that may serve as examples on how to plug-in your own custom DAV providers (see also Writing Custom Providers).

Property Managers#

Inheritance diagram of wsgidav.prop_man.property_manager

DAV providers may use a property manager to support persistence for dead properties.

WsgiDAV comes with two default implementations, one based on a in-memory dictionary, and a persistent one based on shelve:

prop_man.property_manager.PropertyManager
prop_man.property_manager.ShelvePropertyManager

PropertyManager is used by default, but ShelvePropertyManager can be enabled by uncommenting two lines in the configuration file.

In addition, this may be replaced by a custom version, as long as the required interface is implemented.

Lock Managers#

Inheritance diagram of wsgidav.lock_man.lock_manager, wsgidav.lock_man.lock_storage

DAV providers have a LockManager to support exclusive and shared write locking. The lock manager uses a lock storage implementation for persistence.

WsgiDAV comes with two default implementations, one based on a in-memory dictionary, and a persistent one based on shelve:

lock_storage.LockStorageDict
lock_storage.LockStorageShelve

LockStorageDict is used by default, but LockStorageShelve can be enabled by uncommenting two lines in the configuration file.

In addition, this may be replaced by a custom version, as long as the required interface is implemented.

Domain Controllers#

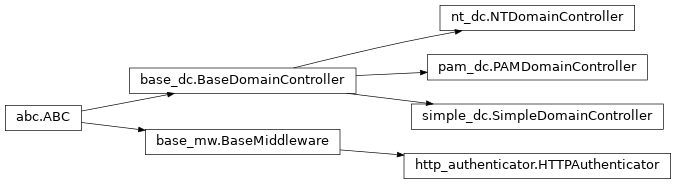

Inheritance diagram of wsgidav.http_authenticator, wsgidav.dc.simple_dc, wsgidav.dc.pam_dc, wsgidav.dc.nt_dc

A domain controller provides user/password checking for a realm to the HTTPAuthenticator.

WsgiDAV comes with a default implementation that reads a user/password list from the config file.

However, this may be replaced by a custom version, as long as the required interface is implemented.

wsgidav.dc.nt_dc is an example for such an extension.

SimpleDomainController

Default implementation of a domain controller as used by HTTPAuthenticator.

Applications#

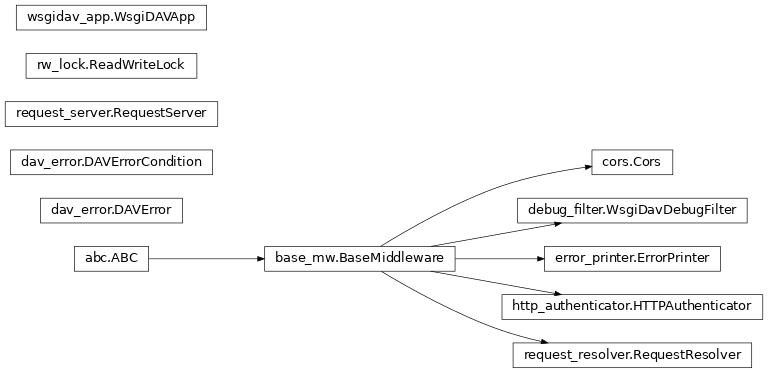

Inheritance diagram of wsgidav.mw.base_mw, wsgidav.dir_browser, wsgidav.mw.cors, wsgidav.mw.debug_filter, wsgidav.dav_error, wsgidav.error_printer, wsgidav.http_authenticator, wsgidav.rw_lock, wsgidav.wsgidav_app, wsgidav.request_server, wsgidav.request_resolver

WsgiDavApp#

Cors#

Middleware wsgidav.mw.cors.Cors. Respond to CORS preflight OPTIONS request and inject CORS headers.

On init:

Store CORS preferences and prepare header lists.

For every request:

Add CORS headers to responses.

ErrorPrinter#

Middleware wsgidav.error_printer.ErrorPrinter. Handle DAV exceptions and internal errors.

On init:

Store error handling preferences.

For every request:

Pass the request to the next middleware. If a DAV exception occurs, log info, then pass it on. Internal exceptions are converted to HTTP_INTERNAL_ERRORs.

HTTPAuthenticator#

Middleware wsgidav.http_authenticator.HTTPAuthenticator. Uses a domain controller to establish HTTP authentication.

On init:

Store the domain controller object that is used for authentication.

For every request:

if authentication is required and user is not logged in: return authentication response.

Else set these values:

``environ['httpauthentication.realm']``
``environ['httpauthentication.username']``

WsgiDavDirBrowser#

Middleware wsgidav.dir_browser._dir_browser.WsgiDavDirBrowser. Handles GET requests on collections to display a HTML directory listing.

On init:

For every request:

If path maps to a collection:

Render collection members as directory (HTML table).

RequestResolver#

Middleware wsgidav.request_resolver.RequestResolver. Must be configured as last in middleware_stack config option. Find the mapped DAV-Provider, create a new RequestServer instance, and dispatch the request.

On init:

Store URL-to-DAV-Provider mapping.

For every request:

Setup environ["SCRIPT_NAME"] to request realm and and environ["PATH_INFO"] to resource path.

Then find the registered DAV-Provider for this realm, create a new RequestServer instance, and pass the request to it.

Note: The OPTIONS method for ‘*’ is handled directly.

WsgiDavDebugFilter#

RequestServer#

Application wsgidav.request_server.RequestServer. Handles one single WebDAV request.

On init:

Store a reference to the DAV-Provider object.

For every request:

Handle one single WebDAV method (PROPFIND, PROPPATCH, LOCK, …) using a DAV-Provider instance. Then return the response body or raise an DAVError.

Note: this object only handles one single request.
